0 3/4 x 10-3/16 STRAIGHT SHANK & STRAIGHT FLUTE LONG LENGTH SPADE DRILL HOLDER - - ID: 1526-P17001

Part Number: 1526-P17001
0 3/4 x 10-3/16 STRAIGHT SHANK & STRAIGHT FLUTE LONG LENGTH SPADE DRILL HOLDER - - ID: 1526-P17001
Spade Drill Holder Body Straight Flute Shank Long Length 33/64 to 11/16" Diameter ID 1526-
Your Price: $481.73USD
Availability in Stock
0 3/4 x 10-3/16 STRAIGHT SHANK & STRAIGHT FLUTE LONG LENGTH SPADE DRILL HOLDER, - ID: 1526-P17001
Over all Length(OAL): 10-3/16 Inch
Connection Diameter (Machine Side): 3/4 Inch
Insert Size: 33/64 Inch - 11/16 Inch
Series: 7

Ship To:

*Add new shipping info at checkout

0 3/4 x 10-3/16 STRAIGHT SHANK & STRAIGHT FLUTE LONG LENGTH SPADE DRILL HOLDER, - ID: 1526-P17001

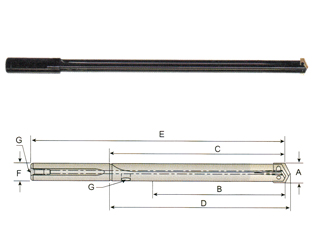

Use the Part # to find the dimensions in the chart below


LONG LENGTH STRAIGHT SHANK HOLDER STRAIGHT FLUTE
Series A B C D E F G EDP Number
Drill Insert Max Drill Flute Ref. Overall Shank Pipe Tap
Range Depth Length Length Length Dia. Length
0 33/64"-11/16" 7" 7-13/16" 7-59/64" 10-3/16" 3/4" 2-3/8" 1/8" P17001
0.5 39/64"-11/16" 7" 7-13/16" 7-59/64" 10-3/16" 3/4" 2-3/8" 1/8" P17051
Series: 7
