5/64 DIA - 4 Flute Ball Nose Diamond Coated Carbide End Mills - ID: 3846-99621

Part Number: 3846-99621

4 Flute Ball Nose Diamond Coated Carbide End Mills, 5/64, 3/32, 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, Diameters ID 3846-

Your Price: $85.75USD

Availability in Stock

5/64 DIA - 4 Flute Ball Nose Diamond Coated Carbide End Mills - ID: 3846-99621

Material: Solid Carbide

Connection Diameter (Machine Side): 1/8 Inch

Coating: Diamond

Tool Diameter: 5/64 Inch

Over All Length(OAL): 1-1/2 Inch

Put me on the Waiting List

Ship To:

select name from list Myself Other (Add new name below)

Add name:

*Add new shipping info at checkout

Quantity + - Add To Cart

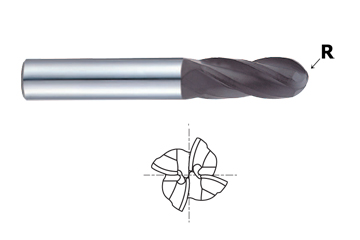

5/64 DIA - 4 Flute Ball Nose Diamond Coated Carbide End Mills - ID: 3846-99621

Use the Part # to find the dimensions in the chart below

Diamond coating offers a new level of wear protection and performance.

The coating combines micro and nano-crystalline diamond coatings into one super hard layer
EI106 Series

R+/-.0010	MILL DIAMETER D	SHANK DIAMETER d	LENGTH OF CUT	OVERALL LENGTH l3	EDP NO.
R.0391	5/64	1/8	1/4	1-1/2	99621
R 3/64	3/32	1/8	3/8	1-1/2	99622
R 1/16	1/8	1/8	1/2	1-1/2	99623
R 3/32	3/16	3/16	5/8	2	99624
R 1/8	1/4	1/4	3/4	2-1/2	99625
R 5/32	5/16	5/16	13/16	2-1/2	99626
R 3/16	3/8	3/8	7/8	2-1/2	99627
R 1/4	1/2	1/2	1	3	99628

Coolant Supply Property (CSP): External

End Shape: Ballnose

Cutting Depth: 1/4 Inch

Number Of Flutes: 4
