45/64 - 15/16 #3 Series #1 P08103 - Spade Drill Body Helical Flute Taper Shank - ID: 1521-P08103

Part Number: 1521-P08103

Spade Drill Body Helical Flute Taper Shank 45/64 to 1-3/8 Drilling Diameter ID 1521-

Your Price: $442.98USD

Availability in Stock

Over all Length(OAL): 11-5/32 Inch

Connection Diameter (Machine Side): MT3

Insert Size: 45/64 Inch - 15/16 Inch

Series: 1

Add name:

*Add new shipping info at checkout

Quantity

Use the Part # to find the dimensions in the chart below

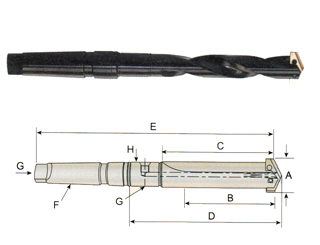

INTERMEDIATE LENGTH- Taper Shank Holder - Helical Flute
Series	A	B	C	D	E	F	G	H	EDP Number
	Drill Insert Range	Max. Drill Depth	Flute Length	Ref. Length	Overall Length	MT	Pipe Tap	RCI
1	45/64" - 15/16"	4-3/4"	5-7/8"	7-39/64"	11-5/32"	#3	1/8"	PR1031	P08103
1.5	55/64" - 15/16"	4-3/4"	5-7/8"	7-39/64"	11-5/32"	#3	1/8"	PR1031	P08153
2	31/32" - 1*3/8"	5-3/8"	6-1/2"	8-19/64"	11-25/32"	#4	1/8"	PR1031	P08204
2.5	13/16" - 13/8"	5-3/8"	6-1/2"	8-37/64"	13-1/16"	#4	1/4"	PR1042	P08254
