Standard Flanges Designed to Support thin Cut off CBN or Diamond Cut off Wheels ID 10688-

Part Number: 16088-SF3.0-.125

1A1R 3 Inch Dia 0.032 or 0.039 Thick 10mm / 20mm/ 1.25 Arbor 0.250 Depth 100/120 Grit 100 Con ExcVal CBN Cubic Boron Nitride Cut Off Wheel ID 16086-

Your Price: $118.99USD

Availability In Stock to 5 Days to Ship

Standard Flanges Designed to Support thin Cut off CBN or Diamond Cut off Wheels ID 10688-

Add name:

*Add new shipping info at checkout

Quantity

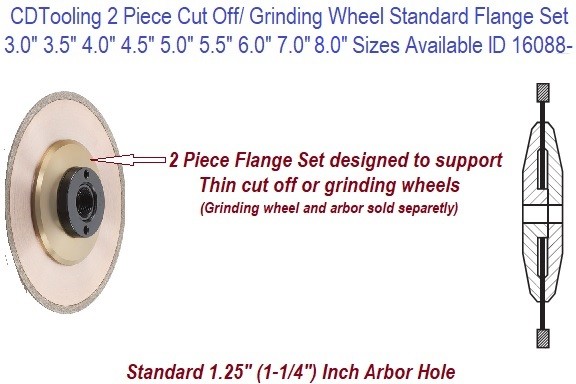

Standard Flanges Designed to Support thin Cut off CBN or Diamond Cut off Wheels

10688-SF3.0-.125 3.0 x 1-1/4 Inch

10688-SF4.0-.125 4.0 x 1-1/4 Inch

SF4.5-.125 4.5 x 1-1/4 Inch

10688-SF5.0-1.25 5.0 x 1-1/4 Inch

10688-SF5.5-1.25 5.5 x 1-1/4 Inch

10688-SF6.0-1.25 6.0 x 1-1/4 Inch

10688-SF7.0-1.25 7.0 x 1-1/4 Inch

10688-SF8.0-1.25 8.0 x 1-1/4 Inch

Recommendations For Correct Wheel Speeds

Typical maximum operating speed by bond types are as follows:

Resin Bond....9,500 SFPM

The above wheel speeds are the maximum safe speeds and not necessarily the most efficient. Superabrasive wheels operate most effectively at speeds lower than the maximum.

The following are general recommendations:

Resin Bond....5,500 to 6,500 SFPM

But as high as 9,500 SFPM on some machines and operations.

1A1R 10 Inch - Dia .047 OR .062 Thick - 0.250 Dept - 100/120 Grit - 100 Con ExcVal CBN Cubic Boron Nitride Cut Off Wheel ID 16129-

$399.99USD

Availability In Stock to 5 Days to Ship

Select Options

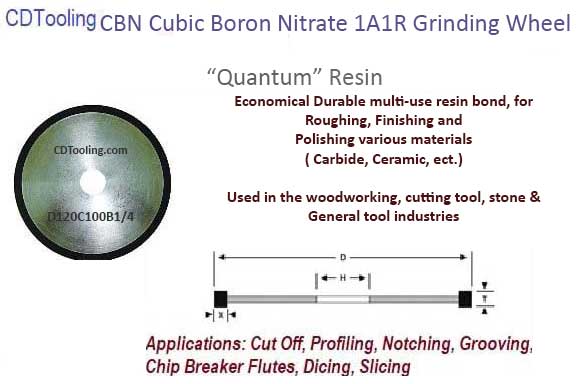

1A1R 6 Diameter x 0.03 Width x 1-1/4 Arbor Hole x 1/4 Abrasive Depth - 120 Grit - C:100 - Quantum CBN Grinding Wheel - ID: 20112-1A1R-6-030-RCBN
